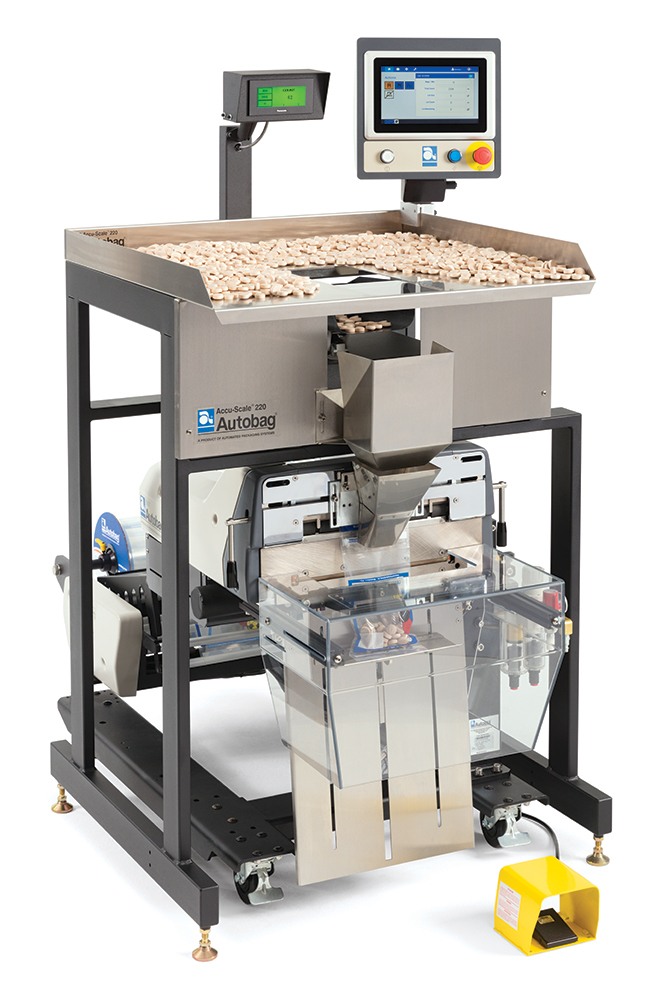

The Accu-Scale 220 is a simple, highly sensitive infeed system that accurately weigh-counts small parts. Designed for use with the Autobag 500 bagger, the Accu-Scale 220 provides a complete weigh-count packaging solution.

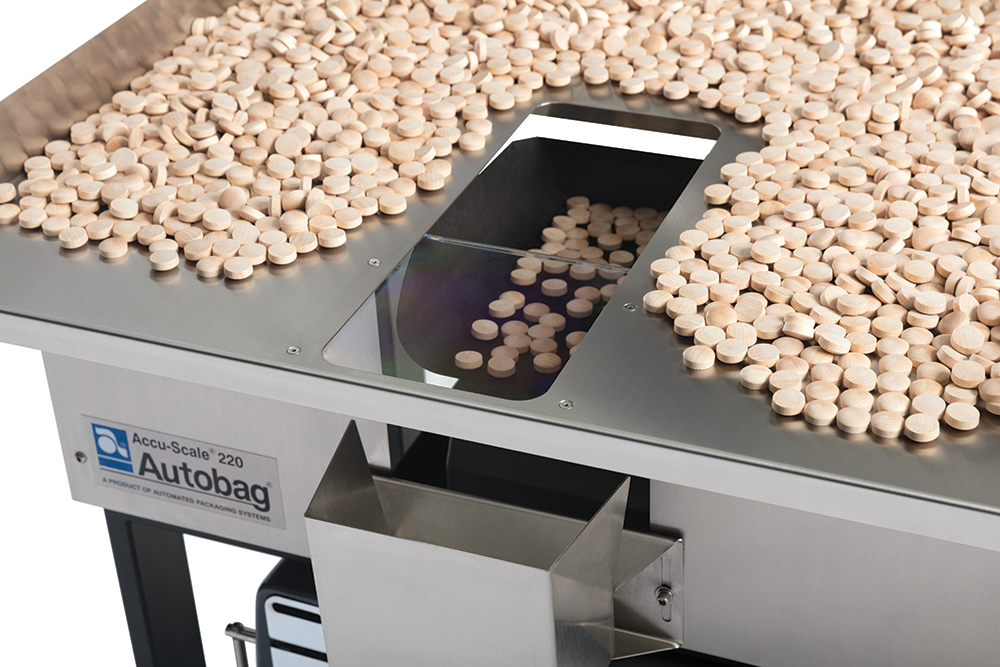

Utilizing the very latest technology, the Autobag Accu-Scale 220 can detect and counting product as light as 0.1 grams. Simply place a sample of the product to be counted into the tray and the scale virtually programs itself to count the product accurately. As more products are added, the weight is instantly measured, and the piece count is displayed. Once the desired amount is reached, a foot-pedal-operated flip-tray automatically dispenses each batch into a pre-opened Autobag plastic bag.
Using system matched Autobag bags-on-a-roll, the Accu-Scale 220 offers a fast and effective semi-automatic, weigh-count and bagging solution.
User Benefits:
Typical Applications:
| Weight: | 152 lbs. (69 kg) |
| Electrical: | 115/230 VAC; 50/60 Hz |
| Air Supply: | .5 CFM/80 psi of clean, dry air (5.5 CFM required with bagger) |

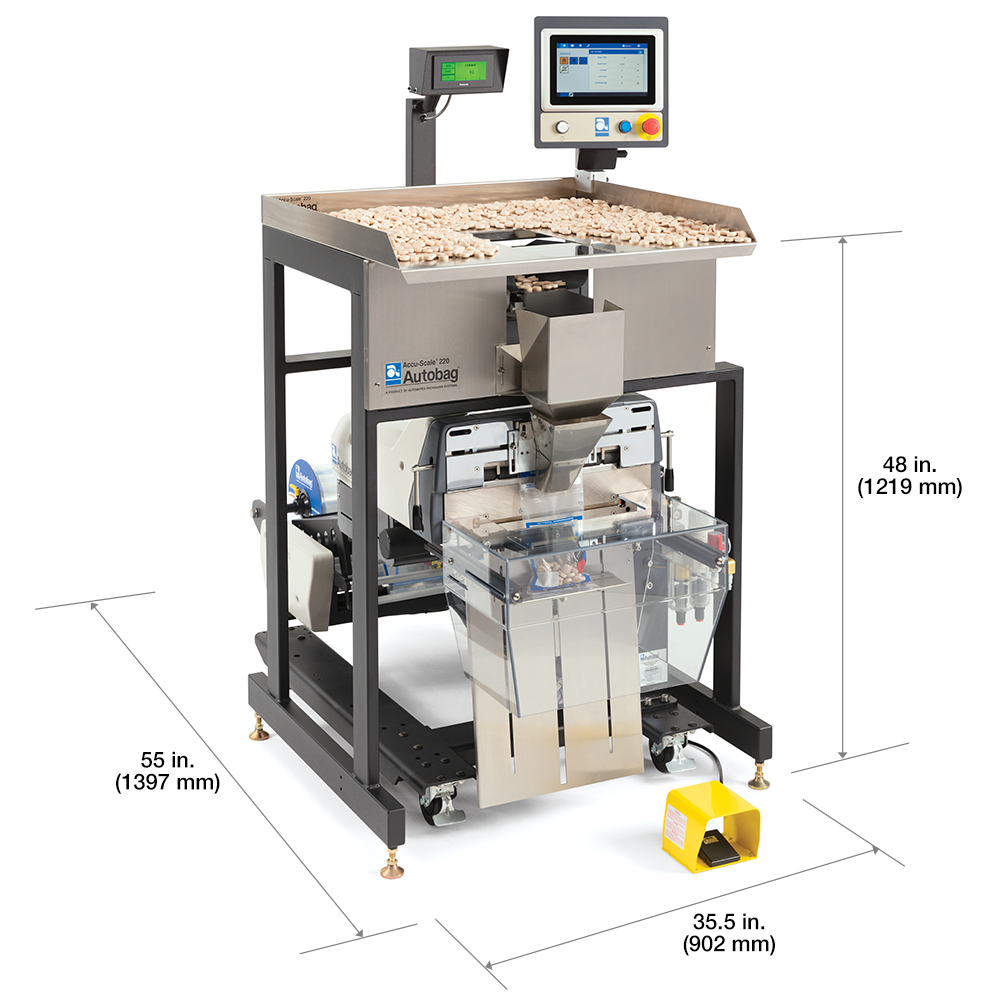

| Width: | 35.5 in. (90.2 cm) |
| Height: | 48 in. (122 cm) |
| Length: | 55 in. (139.7 cm) |
| Weighing Capacity: | 5 lbs. (2.27 kg) |
| Weighing Resolution: | 0.003 oz. (0.1g) |
