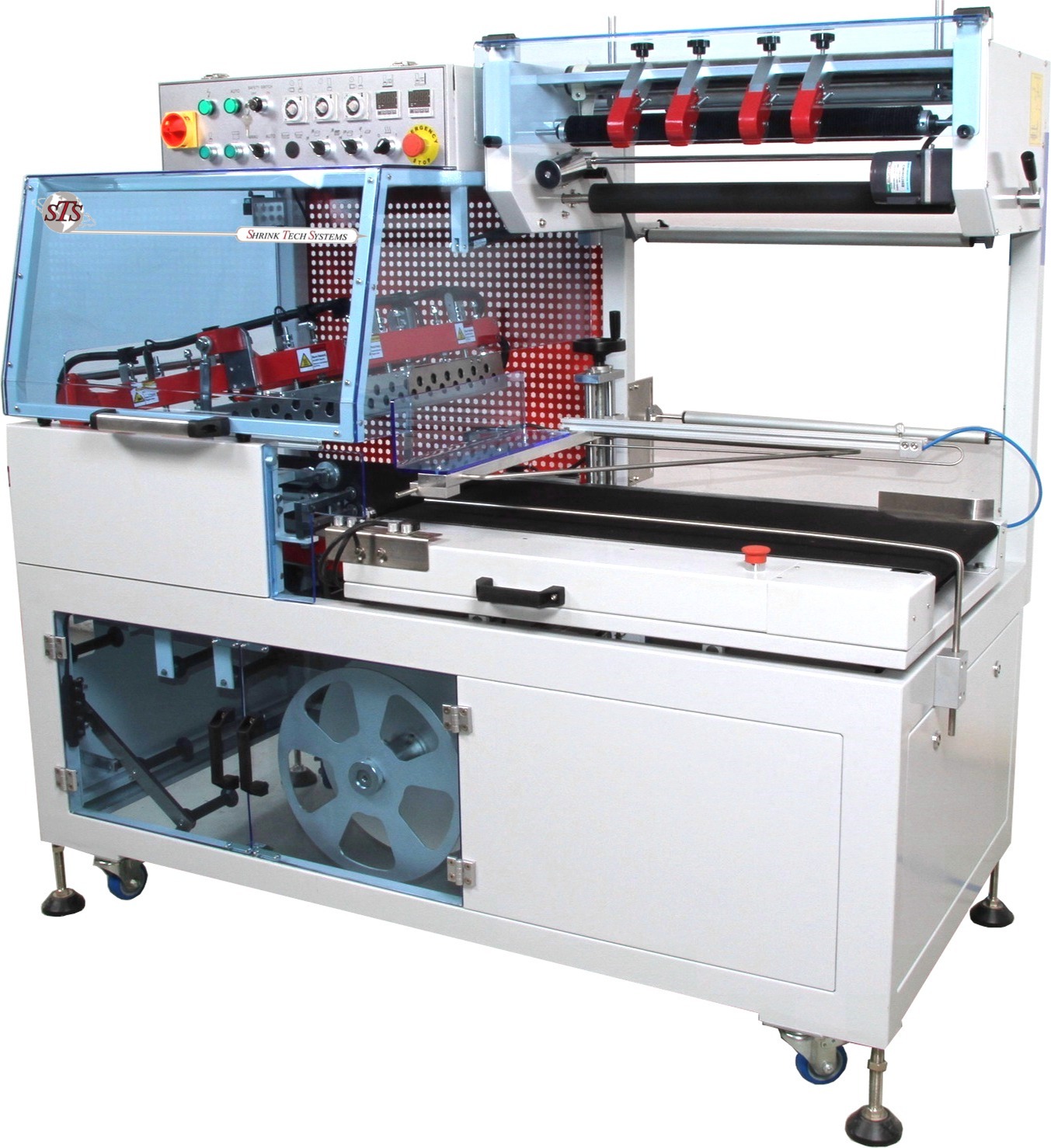

Automatic L Bar Sealer | Pyramid Packaging | Chicago, IL | Materials, Equipment, & Services

Standard Features:

PLC Controlled
Solid Knife Seal Blades
Rounded Corner Seals for No Film Breakage
Adjustable Pin Perf for Air Evacuation
Lexan Guarding with Safety Switches
Horizontal & Vertical Eyes Are Standard
Laser Cut Steel Frame with Durable Powder Coating
Quick Change Over with Easy Adjustments
Automatic Scrap Wind-Up System
Available with Closing Conveyor
Optional Aux Infeed Control

Inquire

Gallery

AL1

Support Documents

AL1 Brochure

Technical Specs

AL Specs

Machine Size

70″ Long

39″ Wide

63″ High

Package Size

L 4″-17 3/4″

W 2 3/8″ -13 3/4″

H 1/8″- 4 3/4″

Seal Bar Size

22″L x 18″ W

Max Film Size

23.5″

System Speed

Standard 76 FPM

Slower or Faster Speeds Available

Air Req.

60 psi., 1cfm

Power

220 Volt

1 Phase

15 Amps

Conveyor Height

33″-36″
