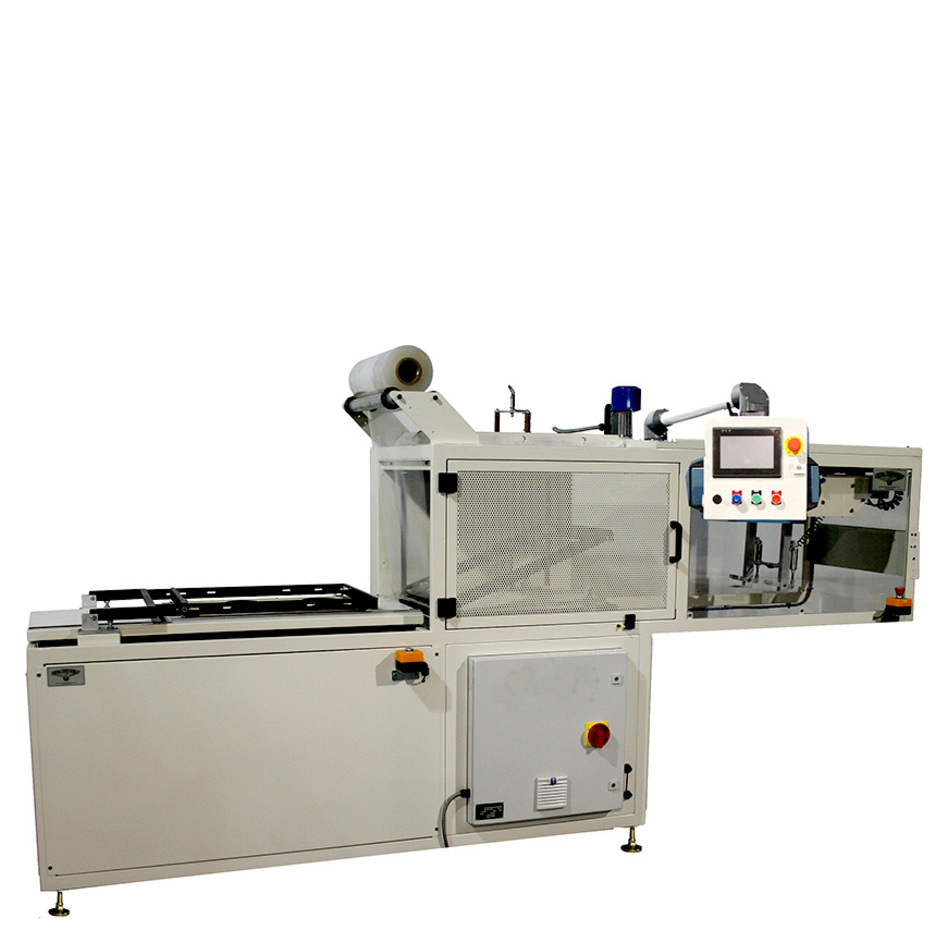

Automatic Stationary Heat Skin Packaging Machine Series

Our ASP Series skin packaging machines are designed for low to medium volume applications. ASP machines incorporate a stationary heating system with instant on/off heaters. ASP skin packaging machines have PLC timer control for precision repeatability and an accurate turbine regulator. An automatic infeed table with traveling template loader, outfeed table and impulse type hot wire cut-off are all standard. A multi-stage vacuum system for complex parts is included as a part of the HMI. A film temperature sensor that overrides the PLC heat timer for consistent film heating is standard.

Options

Automatic overhead outfeed system. The PLC can be used to advance an optional conveyor to remove finished skin packages from the work area.

Features

• A wide range of standard and custom size machines available to match customer requirements.
• The only pendant mounted color touch screen HMI in the industry for the ultimate in operator convenience and accessibility.
• An exclusive remote access via standard Ethernet hardwire or optional Wi-Fi router gives management access to process information from the machine.
• Fully adjustable vacuum motor speed and oven power using an on-screen touch bar graph to provide precise film temperature and vacuum control.
• Machine operating recipe storage including all timer and bar graph settings with memory for up to 99 different recipes for operator recall of proven set-ups for complex products.
• Automatic template infeed and optional automatic outfeed designed to shorten loading and unloading times and reduce labor input.
• Industry leading design, construction, features and customer support.
• Standard sizes 18″ x 24″ through 36″ x 48″ offered
• Use for retail carded packaging or shipping containment
• PLC machine control with touch screen operator interface panel
• Moving template infeed and manual outfeed tables standard
• Impulse hot wire cut-off standard
• Optional automatic outfeed available
