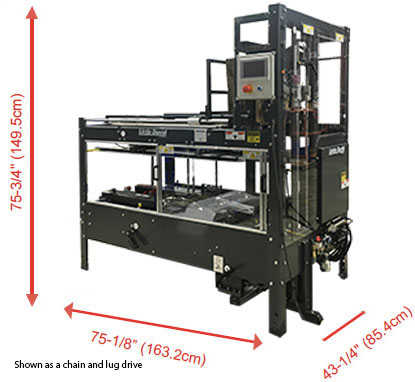

CF-25

The CF-25 industrial grade, high-performance carton erector machine is designed to form and bottom-seal corrugated cases at speeds up to 15 cases per minute.

Small Footprint- Patented case flow technology allows the CF-25 to maintain its versatility without compromising your floor space.

Reliable Case Transfer-Improved case transfer system features upgraded vacuum system and (3) vacuum cups

Chain and Lug Drive- Chain and Lug drive system ensures a square case is formed and eliminates box stalling and slipping.

Quick/Easy Changeover- Load-on-the-fly/easy load hopper ensure case loading and changeover are simple and efficient.

Features:

• Erects and bottom seals up to 10 cpm (standard) and 15 cpm (high speed)
• Patented case flow process enables small footprint
• 2-minute case size changeover; requires no tools
• Chain and lug drive system ensures case is square during sealing and eliminates slipping and stalling seen in side-belt machines
• Interlocking safety gates restrict access to moving parts
• 150 case powered hopper
• Pneumatically folds flaps
