High-speed food packaging equipment with easy wash-down

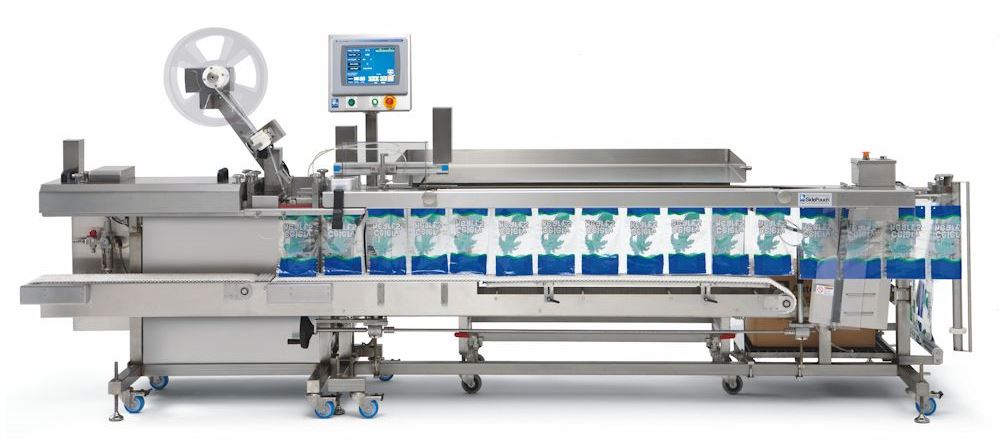

The FAS SPrint Revolution food packaging machine brings new levels of speed and versatility to demanding, high-productivity environments that require daily wash-down procedures. Operating at speeds up to 900 inches per minute, this state-of-the-art system offers maximum flexibility, functionality and reliability for food bag packaging.

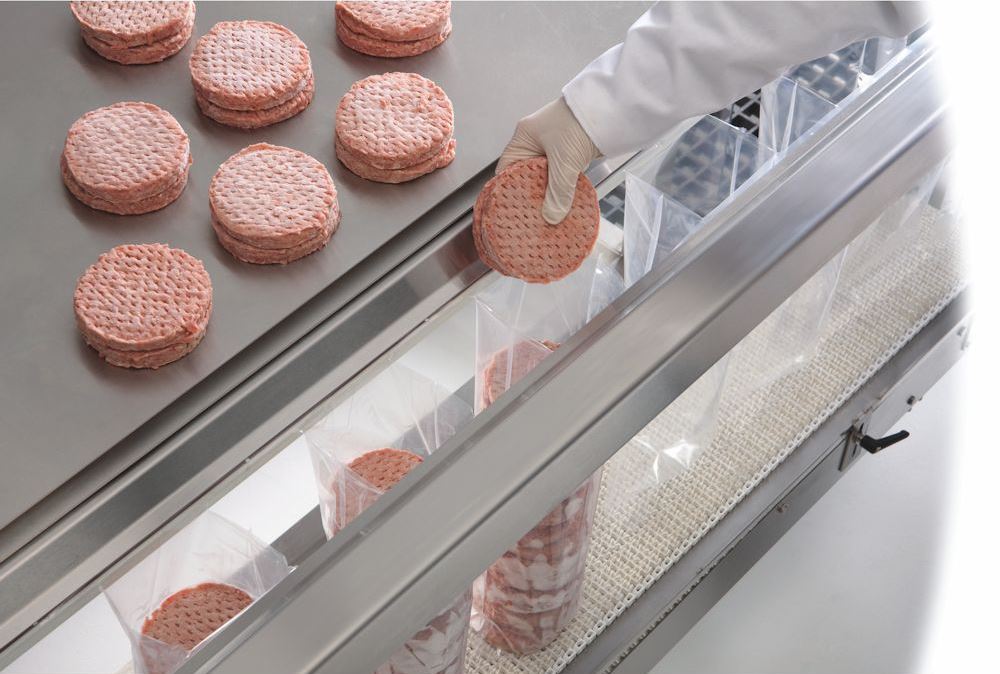

This unique food grade packaging system presents a conveyor of pre-opened plastic bags that are staged for immediate loading. The 60″ wide load area features a 6″ pass-through, and tilts vertically for easy maintenance and sanitation. An innovative Coordinated Motion Seal Flattener is coupled with a band sealing system to ensure high quality, airtight, 3/8″ bag seals. The SPrint SidePouch bagger operates in continuous, intermittent or batch modes, and cycles on pre-set parameters, or manually with a footswitch. This highly flexible design accommodates one or more operators or infeeds and a wide variety of products and bag sizes.
An integrated Allen-Bradley® control package, featuring Kinetix® Servo motors and drives, a CompactLogix™ L45 PLC, and a large, 10″ PanelView Plus HMI, is designed for ease of operation, serviceability, integration, and overall system reliability. A simple flash card programs all of the components. The AutoTouch™ Control Software displays real time productivity data and provides easy access to job storage, job recall and on-board system diagnostics.
System-matched SidePouch plastic poly bags provide optimum performance, and offer a variety of special features, such as reclosable zipper bags, gussets, reinforced headers, tamper-evident perforations and more. SidePouch bags are pre-made and fan-folded in a box, eliminating the need for costly machine modifications to utilize their value-added features. In addition, these bags can be pre-printed in up to 10-colors with high-resolution graphics, text and bar codes for unique, attractive food packaging with a competitive edge.
FAS SPrint Revolution SidePouch Bagger Fast Facts
User Benefits:
Typical Applications:
| Weight: | 1134 lbs. (514 kg) |
| Electrical: | 110/230 VAC; 50/60 Hz; 12/6 Amps |
| Air Feed: | 5 CFM/80 psi of clean, dry air |
| Height: | 63 in. (160 cm) |
| Depth: | 47 in. (119 cm) |
| Length: | 148 in. (376 cm) 177 in. (450 cm) with inline imprinter and support conveyor options |
| Pass-Through: | Up to 6 in. |
| Bag Thickness: | 1.5 to 4.0 mil |
| Bag Sizes: | W 2 to 24 in. L 3 to 18.75 in. |
| Approvals: | USDA Accepted AIB Inspected facilities |
