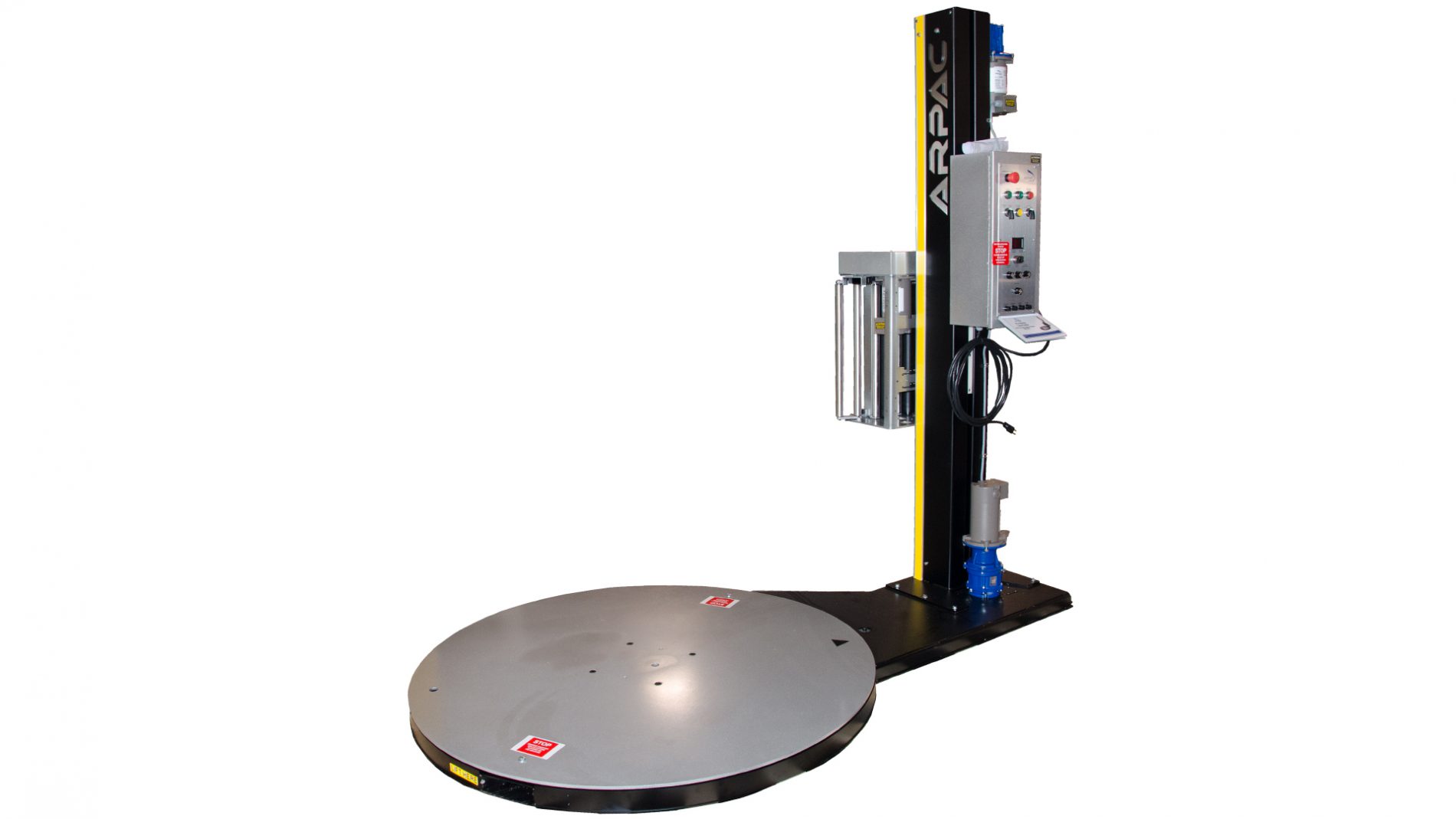

PRO-SERIES

Semi-Automatic Turntable Stretch Wrapper

The new PRO-SERIES enjoys the reputation of being one of the most cost-effective semi-automatic machines on the market today. A new ergonomic sturdy design, with chains enclosed in the tower frame, ensures safer operation. Standard features include: illuminated adjustable (0-7) LED top & bottom wrap counters, top overwrap control, anti-static film rollers, cycle pause, variable speed controls for both turntable and carriage, upgraded photo eye to see most dark loads, plus EZ-LOAD Powered Pre-Stretch, maximizing stretch film usage.

The PRO-SERIES is often purchased with the WRAP-N-WEIGH feature that combines wrapping and weighing operations. A precision scale and digital controls are integrated into the machine which brings greater economy and efficiency to any wrapping operation requiring weighing.

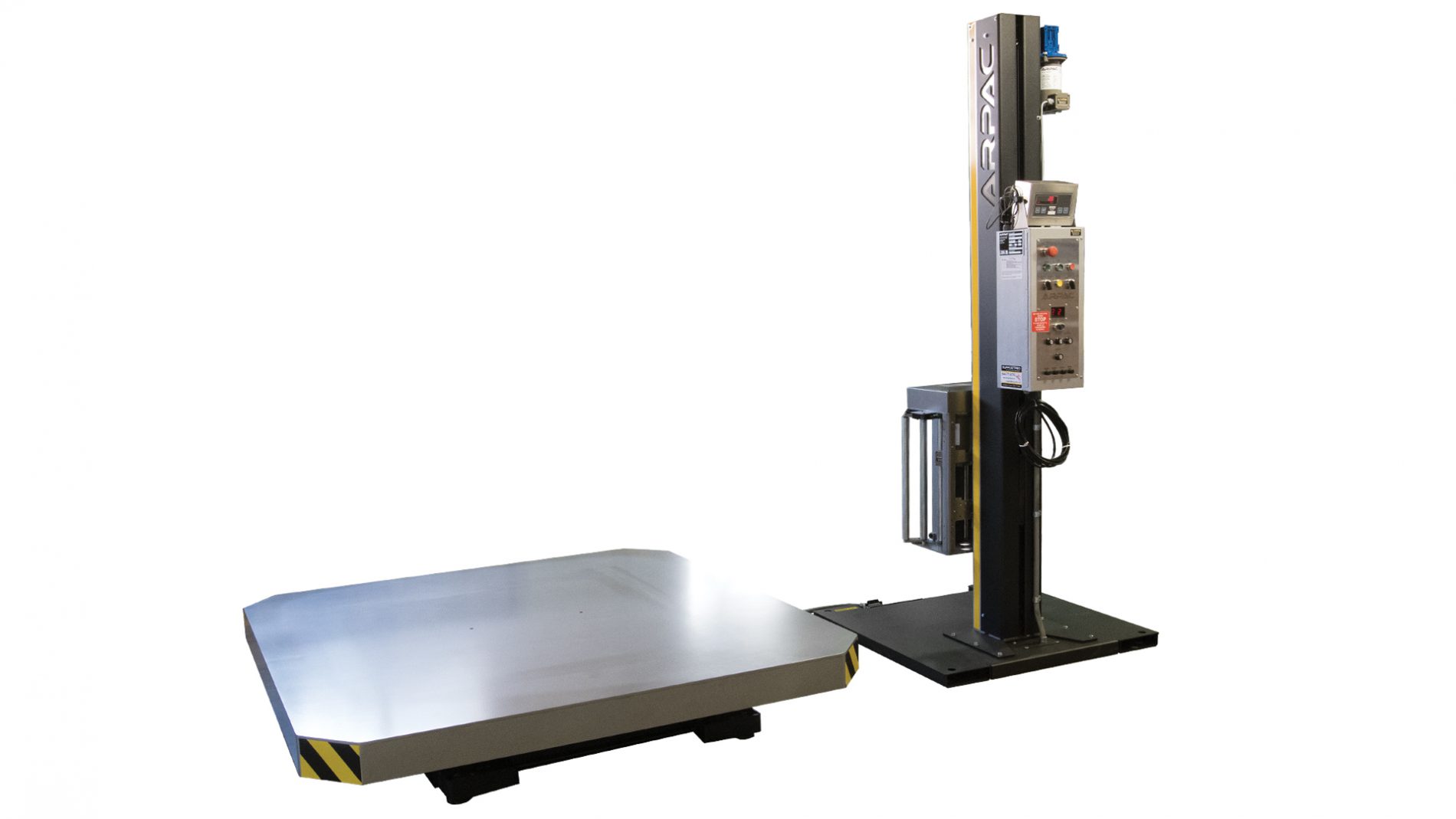

This 4,000 lb. capacity system is available with a high-profile turntable for forklift loading, or low-profile turntable for pallet-jack loading.

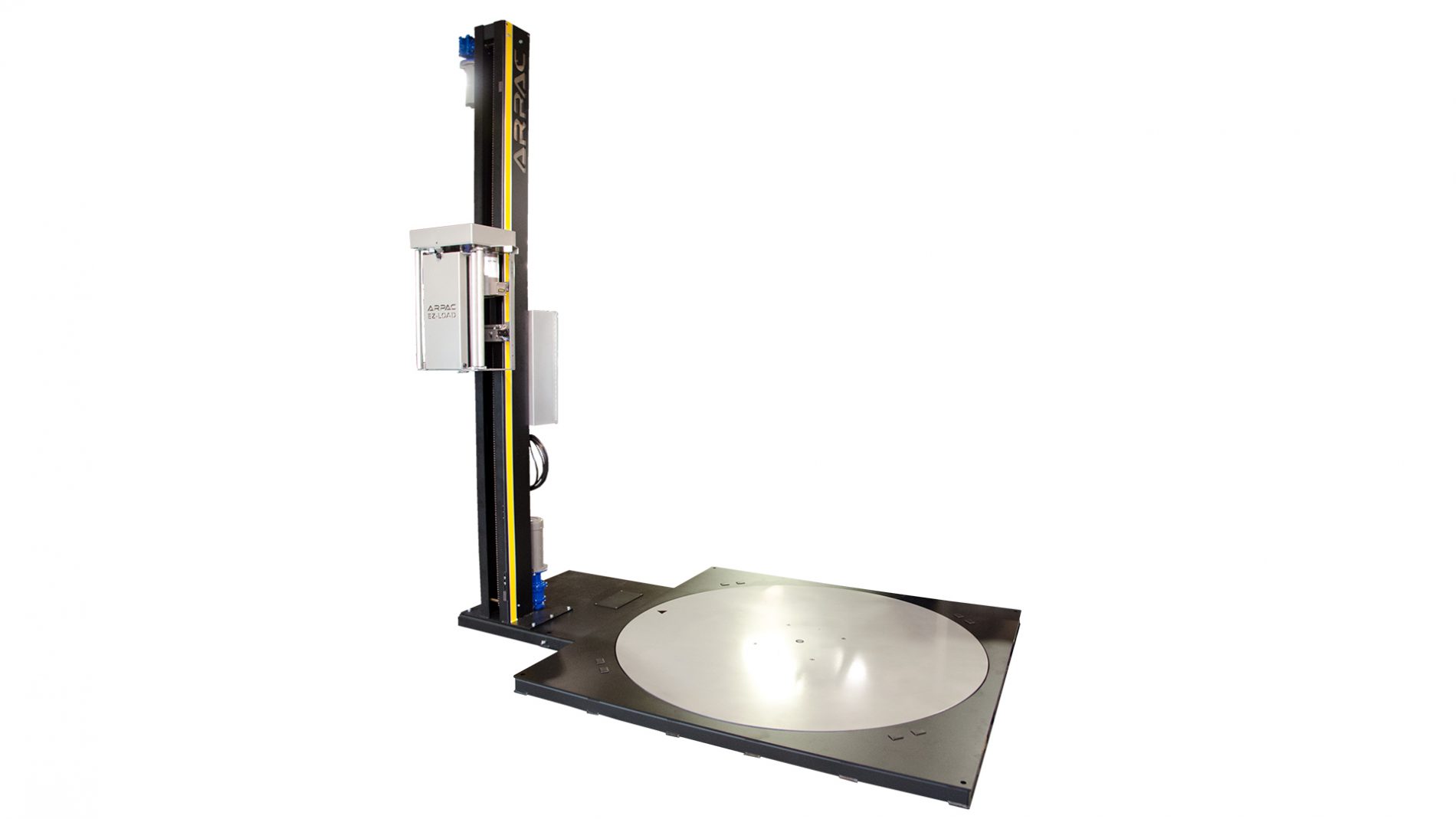

The PRO-SERIES can be customized to suit your material handling requirements with extended towers for taller loads and split frames for odd-sized larger loads.

The PRO-SERIES is part of a robust line of stretch wrapping equipment designed to maximize stretch film usage while ensuring the very best load unitization. All equipment is constructed with heavy-duty reinforced structural steel, and finished with non-corrosive Steel-It paint, to guarantee years of reliable wrapping. The PRO-SERIES is manufactured in the USA.

Features:

• Heavy-duty, welded steel construction (no plastic panels) designed for long life
• Variable turntable speed using 1/2 hp, 90 Vdc motor with ANSI 50 chain drive system, no rubber belts
• Up to 12 RPM rotating table can deliver 25–40 loads per hour
• Long-range photo eye for automatic load height sensing
• Automatic top film over wrap control feature (TOC)
• Adjustable top and bottom illuminated LED wrap counters
• Cycle pause feature
• Electronic film tension adjustment control on control panel
• Manual jog control for turntable
• Eco-friendly, durable, powder coating
• Film Delivery System
• EZ-Load film pre-stretch dispenser for 20″ film rolls
• Dual anti-static film rollers with manufacturer’s lifetime warranty
• Film pre-stretch capability from 150 to 300% stretch (200% standard)
• Variable carriage speeds up to 21 feet per minute
• 1/2 hp, 90 Vdc motor with ANSI 40 chain lift drive
• Dancer bar variable-corner compensation
• Electronic film tension adjustment control
• Allen-Bradley power, control, and safety components
• Allen-Bradley MicroLogix PLC
• UL/CSA approved components
