The Legend Uniform is an operator fed, semi-automatic, uniform, industrial grade case sealer designed to top and bottom seal corrugated cases. The Legend Uniform features offset tape heads which allow for a minimum case height of 2 5/8”.

Features:

  • 1 Year all components
  • 2 Years Gear Reducer
  • 3 Years Cartridge
  • Tapes cases from 4-1/2″ (114mm) to 24″ (610mm)
  • Can be ordered for 2″ or 3″ wide tape
  • Plug in operation
  • Minimal operator training required
  • Sealed drive system
  • CaseLocker ST tape cartridge requires no lubrication
Inquire

Gallery

Support Documents

Technical Specs

Power Requirements:

  • C115 – 220 volts, single phase, 60 cycle (other voltage available)

Operating Speed:

  • Continuous belt drive: 80’ per minute (24.4/min.) – production rate depends on box size and operator dexterity

Weight:

  • 230 lbs. (104 kg)

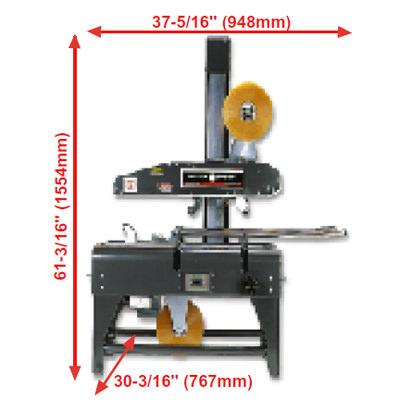

Case Range:

  • Length: 4.5″ – infinite
  • Width: 4.5″ – 20″
  • Height: 2 5/8″ – 24″
